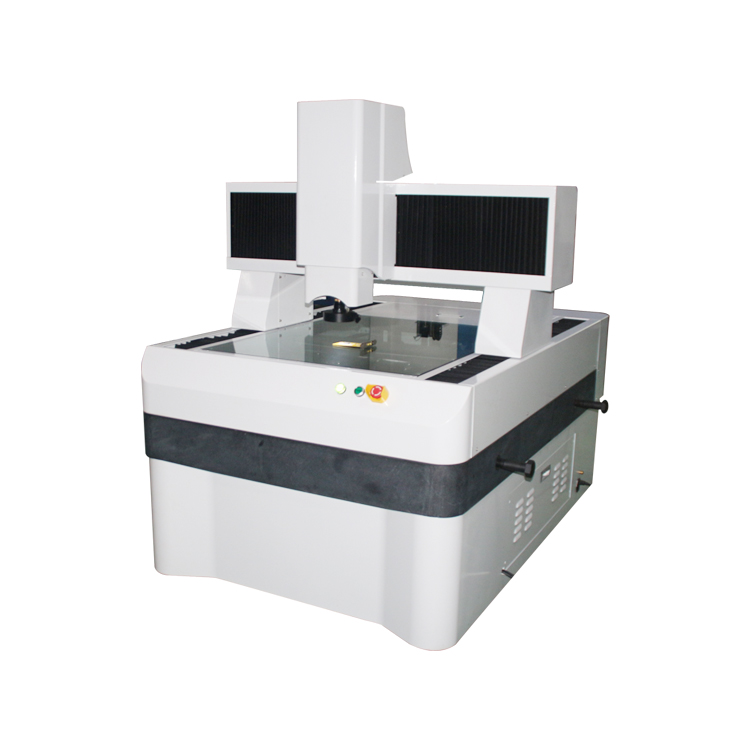

0.001mm Coordinate Computer Measuring Machines For FPC PCB

Name: 0001mm Coordinate Computer Measuring Machines For FPC PCB
Brand: Kejian
Price: 5000 USD

0.001mm Coordinate Computer Measuring Machines For FPC PCB Manufactures

Brand Name : Kejian

Model Number : KJ-CNC

Place of Origin : China

MOQ : 1 Set

Price : USD 5000/Set

Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 Set/Week

Delivery Time : 5 work days

Packaging Details : wooden

Product Name : Fully Automatic Image Measuring Instrument

Measuring range : 300*200*200

Working distance : 92mm

Display resolution : 0.001mm

Resolution : 1um, 0.5um for option

Warranty : 1 Year

Contact Now

New Design 0.001mm Coordinate Computer Measuring Machines For FPC PCB

Standard Series Automatic Vision Measurement Machine

Standard series full automatic vision measurement machine is with Full CNC close-loop axis motion control, using UWC 4000i series controller, servo motors and joystick, ensures stable and fast movement, increase the measuring accuracy and efficiency. Also the package solution for the control system offers stable performance of the machine, minimizing the maintenance.

Parameters
  	 			Item
 			Standard 322 CNC
 			Standard 432 CNC
 			Standard 542 CNC

 			Dimension(mm)
 			650 x 550 x 935
 			800 x 700 x 1000
 			1100 x 800 x 1030

 			Measuring range
 			X
 			300
 			400
 			500

 			Y
 			200
 			300
 			400

 			Z
 			200
 			200
 			200

 			Working stage
 			Stage size
 			460 x 360
 			560 x 460
 			660 x 560

 			Glass size
 			340 x 240
 			440 x 340
 			540 x 440

 			Max. loading
 			25kg
 			25kg
 			25kg

 			Image and measuring system
 			CCD
 			Industrial color 1/3" CCD camera

 			Lens
 			Manual dented zoom lens 0.7 - 4.5X (Navitar zoom lens for option)

 			Magnification
 			18 - 188 X

 			Field of view(mm)
 			11.1 - 1.7

 			Working distance
 			92mm

 			Display resolution
 			0.001mm

 			Measuring Accuracy(um)
 			Optical
 			E1x, E1y=3+L/200

 			E1z=3.9+L/200

 			E2xy=3.0+L/150

 			Probe
 			E3=3.5+L/100

 			Resolution
 			1um, 0.5um for option

 			Operation mode
 			Integrated intelligent control(joystick, mouse, keyboard)

 			Illumination
 			Programmable LED surface ring light, 8 sections, parallel contour light

 			Power supply
 			220V±10% AC 50Hz, resistance<=4 ohm ground should be required

 			Working environment
 			Temperature 18-24 °C, humidity 30 - 75%, avoiding vibration


Accessories
    Illumination
★ 4 sections surface ring LED light
 ★8 sections surface ring LED light
 ★40 sections surface ring LED light★40 sections color surface ring LED light.
    Lens
★Manual dented zoom lens
 ★Co-axial optical manual zoom lens
 ★Auto zoom lens
 ★Co-axial optical auto zoom lens
    Probes
★Renishaw MCP touch probe kits, probe measuring error <=0.75

 ★Renishaw PH6+TP20 touch probe kits, probe measuring error <=0.35
